Calex Gaming Foldable Floor Lamp V4 RGBIC

Getting Started

Before you start adding this CALEX SMART product, write down the name and password, including spaces and capital letters, of your Wi-Fi network. Make sure you have a strong Wi-Fi signal.

Note: Check if your smart device supports 2.4GHz Wi-Fi or 5GHz Wi-Fi networks.
If your smart device only works on 2.4GHz networks, then you need to change your network's Wi-Fi frequency to 2.4GHz in the settings menu of the router. For support with this, please contact your internet provider.

1. Download the CALEX SMART app from the Google Play Store, the Apple Store or scan the QR code.



2. Open the app. Are you using the app for the first time? Then follow the instructions on the screen to create your account.

3. Make sure your smartphone's Bluetooth is turned on.

4. Follow these instructions to add your device.

Reset: You may need to reset the product first. Click here for the reset instruction.

CALEX Gaming & Razer Integration
To integrate your Calex Gaming product with the Razer software, click this link. Then follow the steps in the guide to complete the sync.

Package Contents

• 1x Foldable Floor Lamp
• 1x Control Box
• 1x IR remote control
• 1x External Power Supply
• 4x Wall Clips
• 4x Screws
• 4x Plugs
• 1x Allen wrench
• 1x Allen bolt
• 1x Metal ring

Installing Device on the Wall:

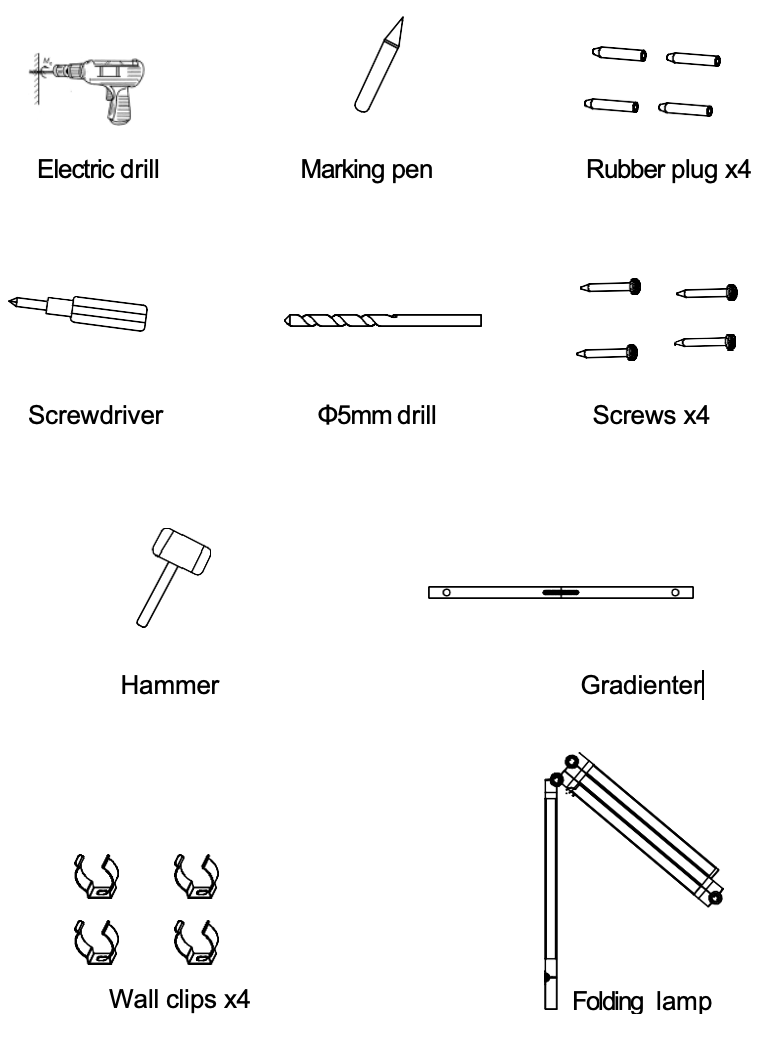

Prepare the following items

Installation steps

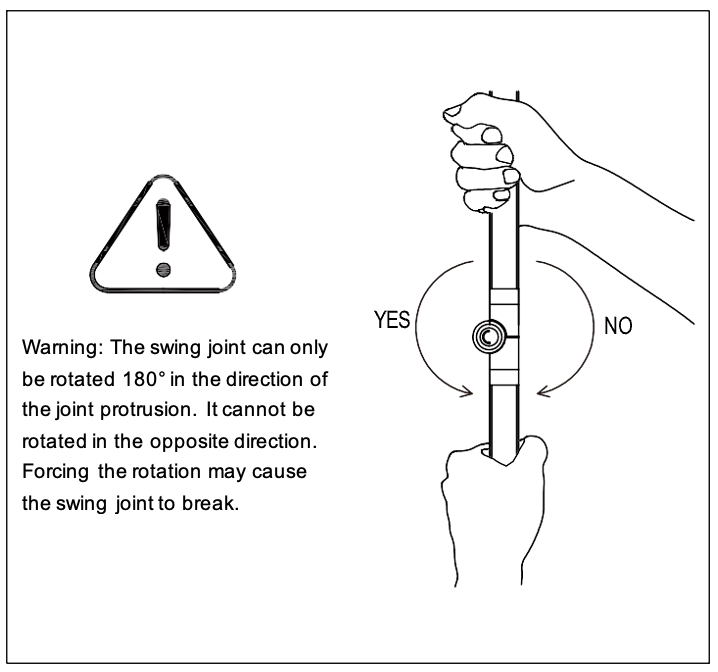

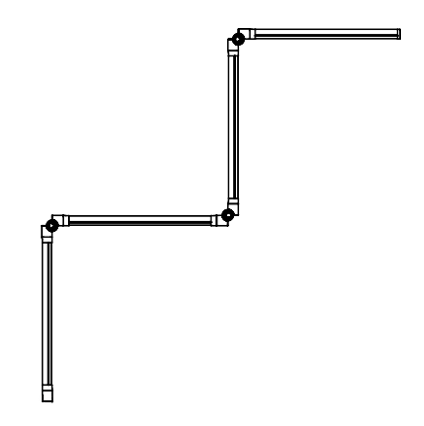

1. Adjust the lamp to desired shape by hand

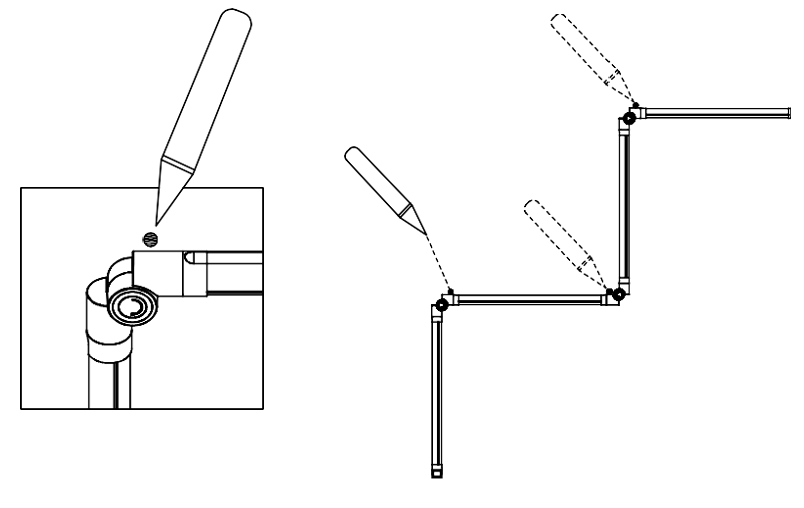

2. Stick the folding lamp to the wall and draw 3 to 4 points

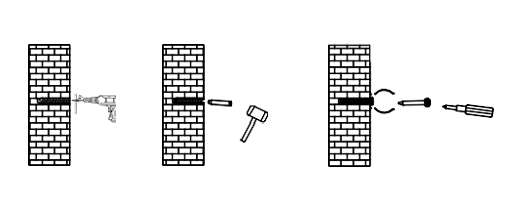

3. Drill the same amount of holes on the points that have been drawn with an electric drill, insert rubber plugs, and screw in screws with the clips stuck to the wall

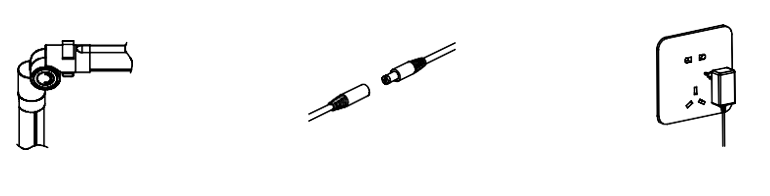

4. Install the folding lamp in the clips. Connect the controller and connect the adapter

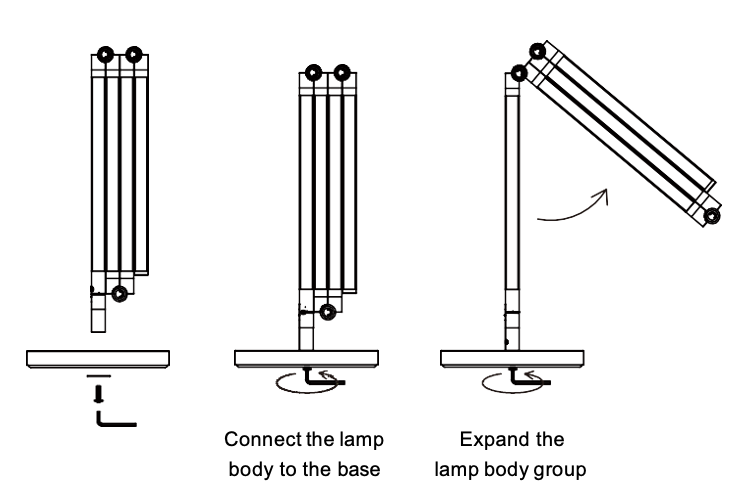

Installing Device Freestanding:

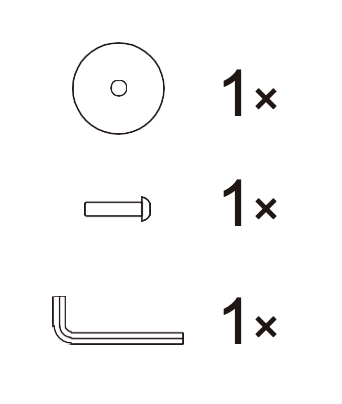

Prepare the following items

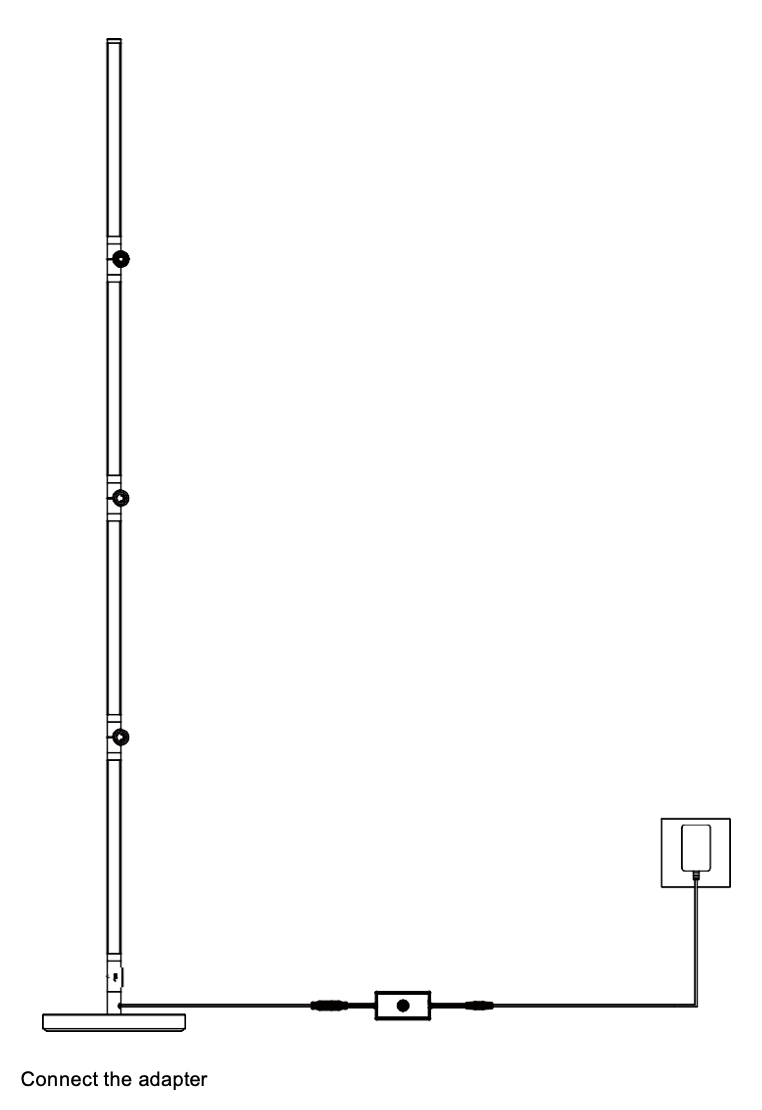

Installation steps

Additional Information Low Voltage Indoor

This manual also covers the following article numbers:
6201000600
