Calex Gaming Neon Flex Strip 2M RGBIC

Updated 23 September 2024 07:25

Brian

Getting started
Before you start adding this CALEX SMART product, write down the name and password, including spaces and capital letters, of your Wi-Fi network. Make sure you have a strong Wi-Fi signal.

Note: This item only works on a 2.4GHz Wi-Fi network, not on a 5GHz Wi-Fi network. If you get a message that the product only works on 2.4 GHz networks, then you need to change your network's Wi-Fi frequency to 2.4 GHz in the settings menu of the router. Click here for an overview of the required Wi-Fi settings.
Please refer to your router manual or contact your internet provider for help on how to change settings.

Adding the CALEX SMART product to the Calex App
Download the Calex Smart app from the Google Play Store or the Apple Store. Click on the one of the logo's below while viewing this page on your phone. You can also scan the QR code found on the packaging with your phone.

Open the app. Are you using the app for the first time? Then follow the instructions on the screen to create your account.

Follow these instructions for adding your device.

Reset procedure
You may need to reset the product first. Click here for the reset instruction.

Package Contents

1x Neon Strip Light
1x Control Box
1x IR remote control
1x External Power Supply
12x Straight Clips
4x 90 Degree Clips
16x Adhesive Tapes
16x Screws
1x User Manual

Installing Device

Unpack the box and check all items listed in the packing list

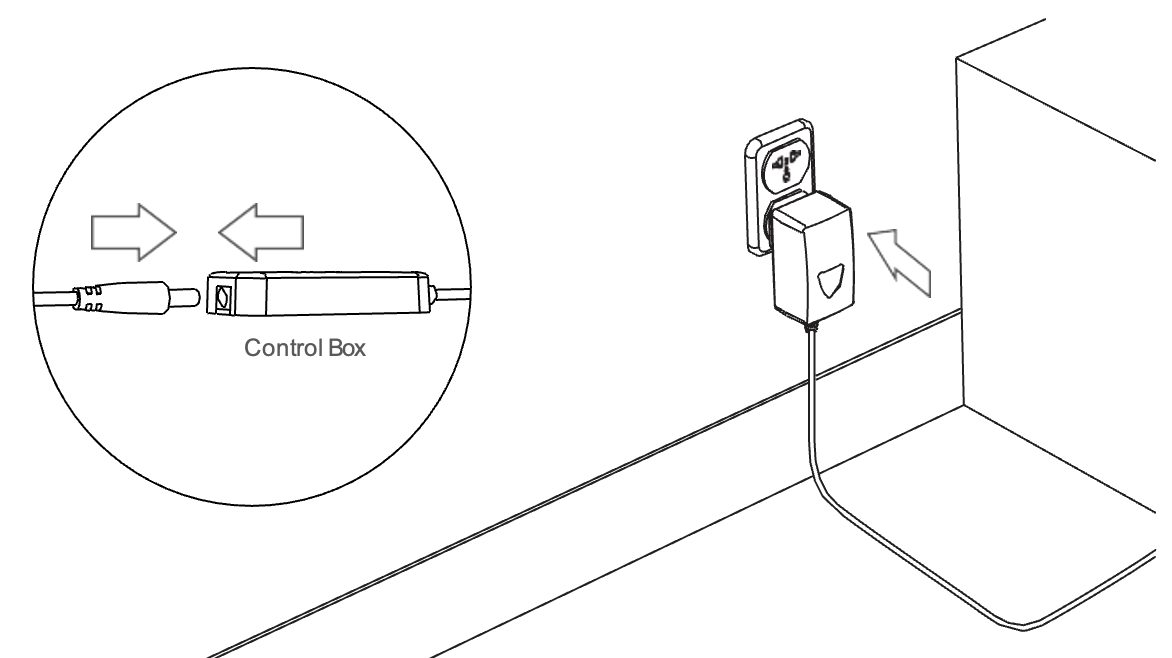

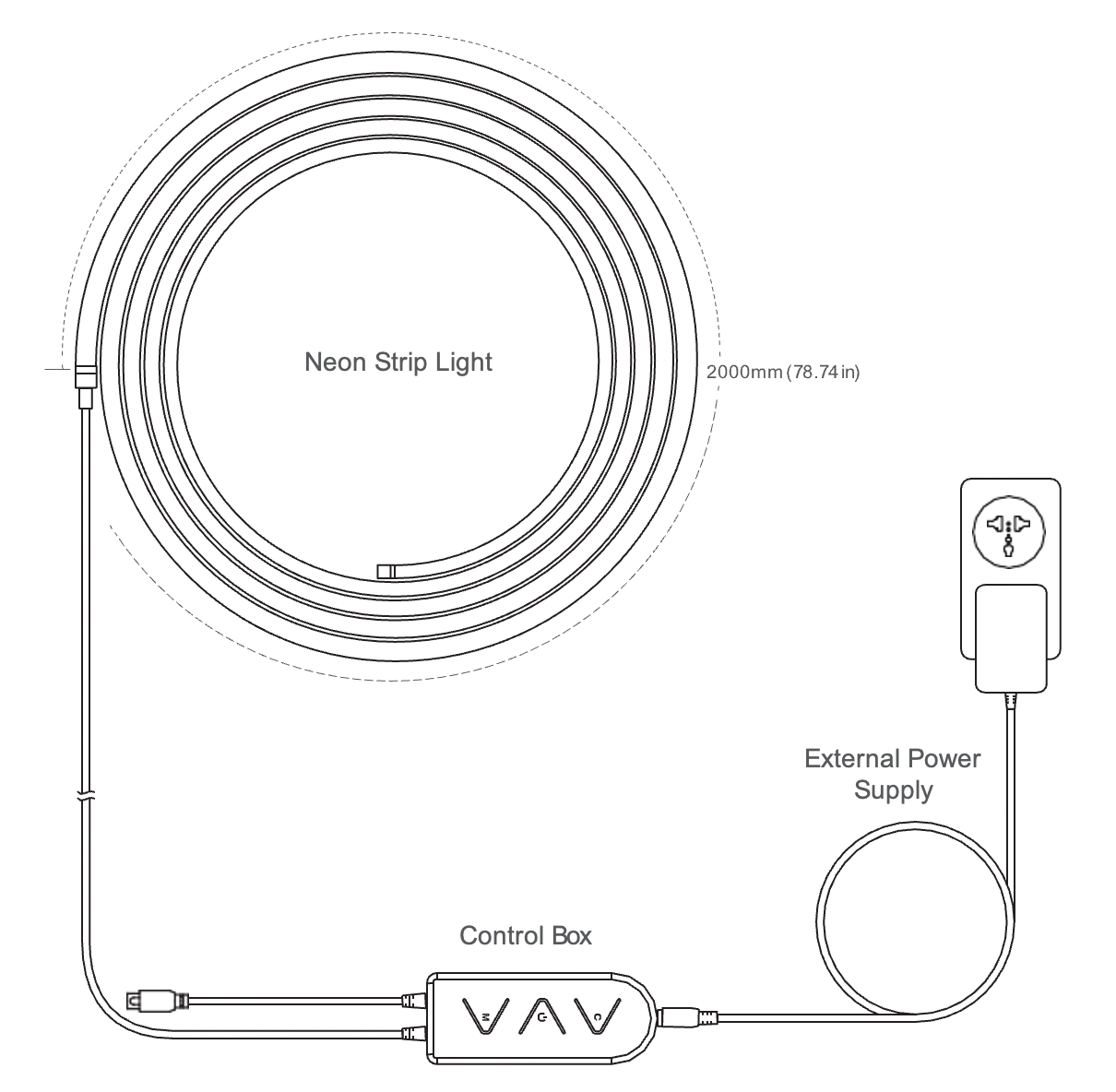

Electrical connections to power supply, control box and neon strip light
Power on the neon strip light and check whether it lights up

Installing Steps

Wipe the surface to make sure it's clean and dry
After tearing off the adhesive film, you can stick the fixing clips to the place you want and press it firmly(if necessary, you can reinforce the clips with a screw), mounting spacing is recommended to be between 7cm and 15cm, and then place the neon strip light into the fixing clips

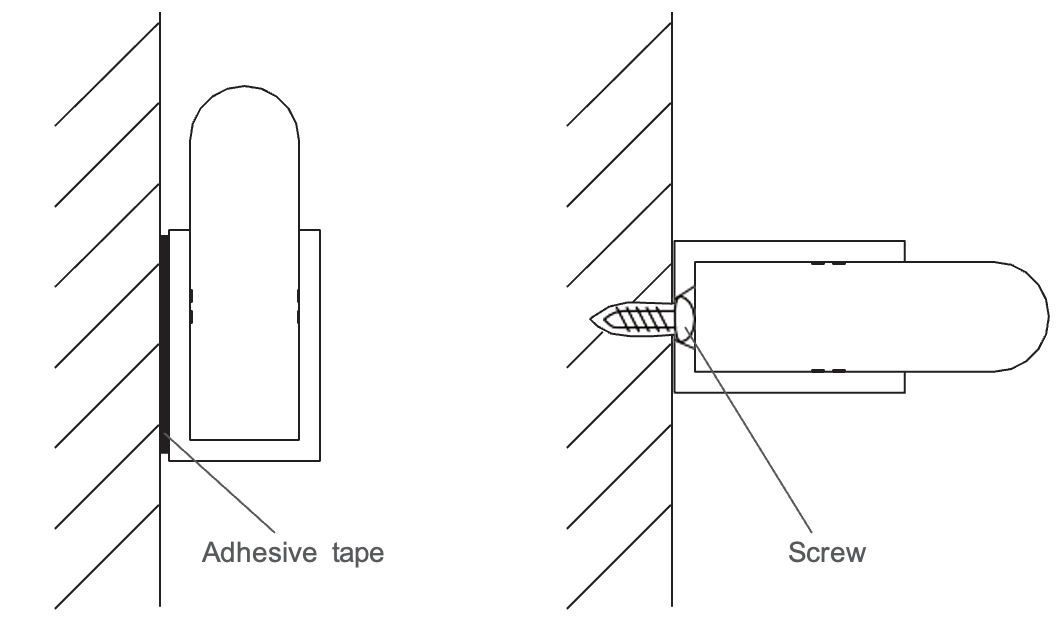

Notes: The adhesive tape can be paste to the bottom of fixing clips and the screws are fixed on the side of the fixing clips according to application
Place the control box close to the music source to achieve the best music effect
Power on the neon strip light

CALEX Gaming & Razer Integration
To integrate your Calex Gaming product with the Razer software, click this link. Then follow the steps in the guide to complete the sync.
