Tools and Materials Needed:
- Screwdriver (flathead and/or Phillips, depending on the screws)
- Drill with the appropriate drill bit (depending on the ceiling type)
- Wall plugs and screws (often included, check for correct size)
- Voltage tester (to check for electrical current)
- Stepladder
- Pencil
Step 1: Turn Off the Power
Before starting, ensure the power supply to the ceiling light point is switched off via the circuit breaker. Use the voltage tester to check that no current is running through the wires. This is a crucial safety step.
Step 2: Determine the Position of the Ceiling Light
Hold the ceiling plate in the desired location on the ceiling and mark the spots where the screws will go with a pencil. Make sure the light is centered over the area where you want the lighting.

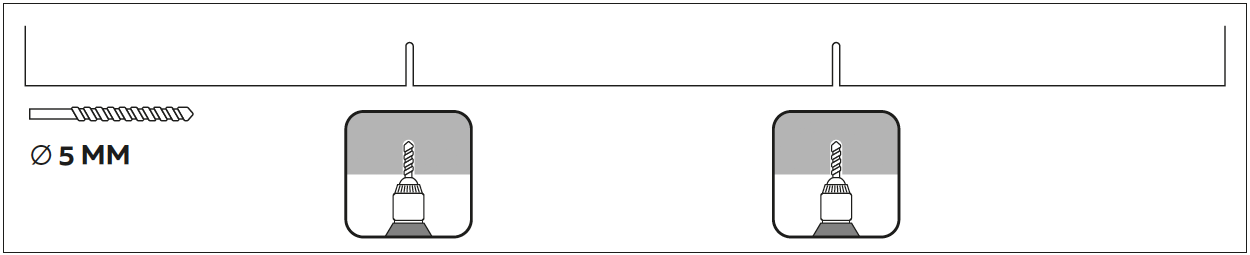

Step 3: Drill Holes and Insert Plugs
Use a drill to create holes in the marked locations on the ceiling. Choose the correct drill bit for the ceiling material (for example, a masonry bit for concrete or a wood bit for wooden ceilings).
Insert the supplied wall plugs into the holes to ensure the screws hold securely.
Step 4: Connect the Wiring
- Take the wires from the ceiling and connect them to the wiring of the ceiling light. Use wire connectors (terminal blocks or wire nuts) to securely attach the wires.
- Brown wire (live) to the brown wire of the light.
- Blue wire (neutral) to the blue wire of the light.
- Green-yellow wire (ground, if present) to the ground wire of the light.
- Ensure the wires are connected tightly but not too rigidly bent.

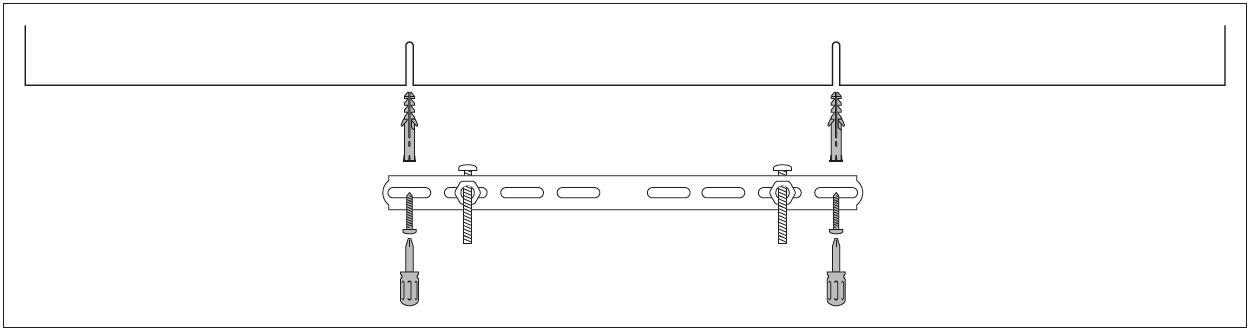

Step 5: Attach the Ceiling Plate
Screw the ceiling plate into the ceiling at the pre-drilled spots. Ensure the ceiling plate is securely fastened and strong enough to support the weight of the light. The screws should be tight, but avoid over-tightening to prevent damage.

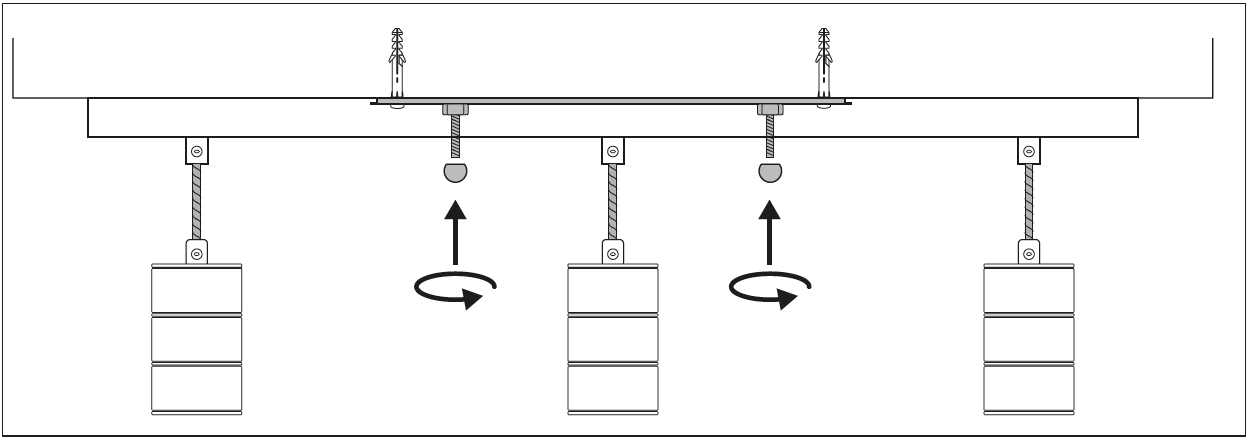

Step 6: Install the Light Fixture
- Place the lamp(s) in the pendant(s) or socket(s) of the ceiling plate.
- Ensure all parts of the light fixture are securely fastened and that there are no loose components.
Step 7: Turn On the Power and Test
Switch the power back on at the circuit breaker and test the ceiling light. Check to ensure the light works properly.
Instructional Video:
Click here to view the detailed instructional video with step-by-step instructions for correctly mounting the fixture.
Additional Step for Smart Bulbs: If your ceiling light comes with Smart Bulbs, follow these steps to set them up: Smart Bulb Installation Instructions.
This manual also covers the following article numbers:
5301001400, 5301001500, 5301001600, 5301001700, 5301001800
