Calex Ceiling Light With Fan

Warnings

• PLEASE READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING INSTALLATION. SAVE THESE INSTRUCTIONS.
• Use only attached parts to reduce the risk of personal injury. Attach the fan directly to the building ceiling according to these instructions.

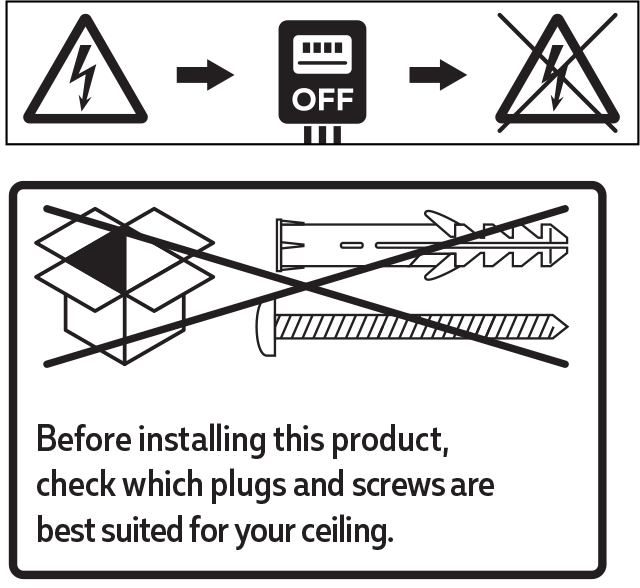

• To avoid possible electrical shock, before installing your fan, disconnect power to the outlet box and the associated wall switch.
• All wiring must comply with state and local electrical codes. If you are not familiar with wiring, engage a qualified electrician.
• To reduce the risk of personal injury, do not bend the fastening system while installing or cleaning the fan.
• Never insert foreign objects between the rotating fan blades.
• To reduce the risk of fire, electric shock or motor damage, do not use a speed controller with this fan. Use only supplied parts.
• Do not use in damp areas.

NOTE: The important safety precautions and instructions in the manual are not intended to cover all possible circumstances and situations that may arise. It should be clear that common sense and caution are necessary factors when installing and operating this fan.

Parts inventory
Open packaging carefully. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to prevent damage to finish. Using the parts inventory, check that all parts are present.

• Cross-shaped mounting bracket x1
• Mounting screws x4
• Remote control x1

Technical drawing
Cross mounting bracket (1x) Installation screws (4x) Receiver (1x) Motor mounting screws (4x) Installation screws wind guide wheel (4x) Outer cover (1x) Motor (1x) Five-bladed wind wheel (1x) Fixed decorative nut (1x) Light strip (1 set) Light strip screw (8x) Lampshade (1x) Wind Guide (1x)

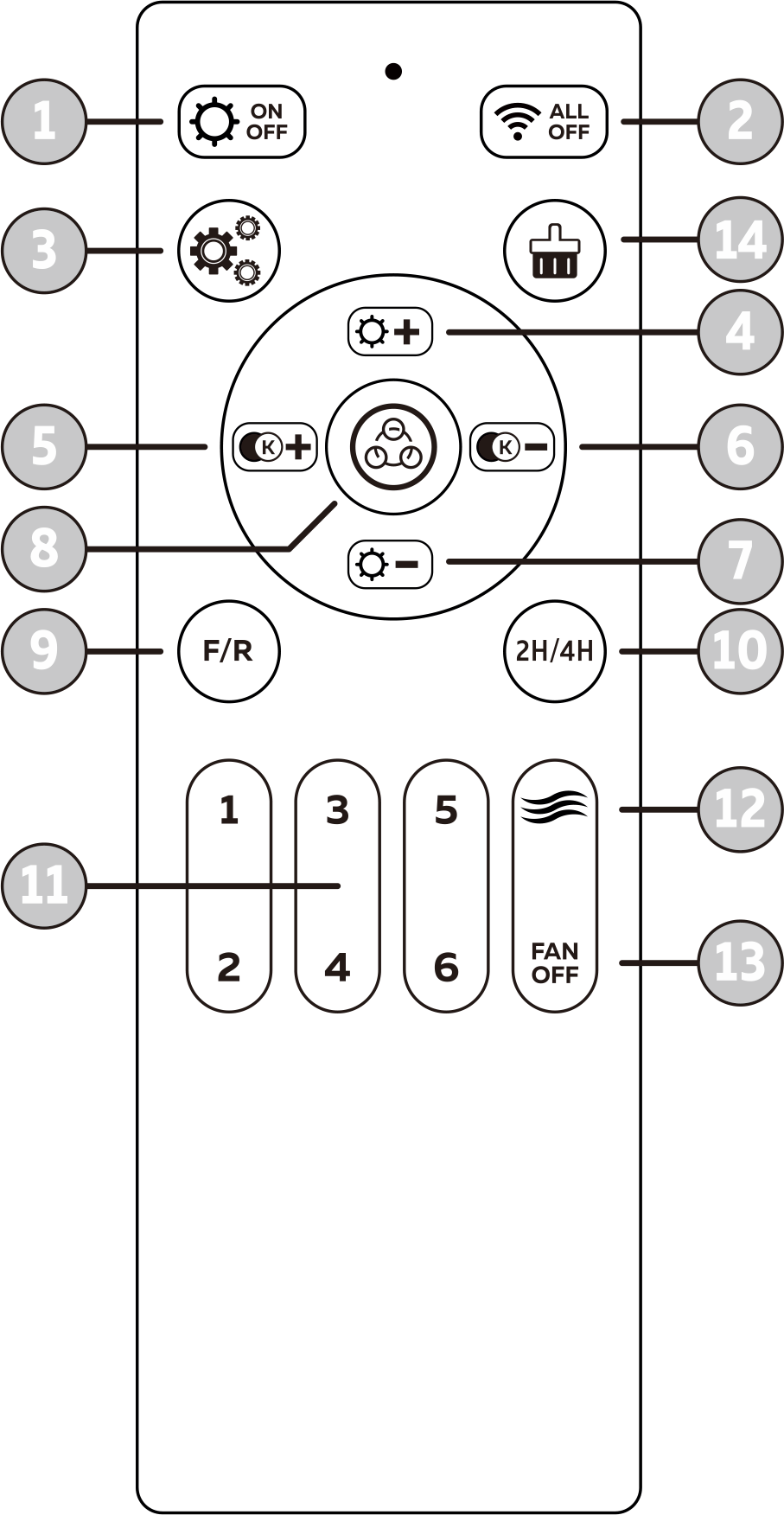

Remote control Turn the light on/off Turn off the light and fan. Press for 3 seconds to put the device in Wi-Fi pairing mode and reset (flashing light) Changing color temperature Increase brightness Increase the color temperature Lower the color temperature Lower the brightness Press and hold within 5 seconds when the device is turned on. If it beeps 2 times, the remote control is successfully paired. Change the fan direction Automatically turns off after 2 hours, press twice for 4 hours, press three times to turn off the countdown function Select fan speed (1-6) Nature mode: automatically switching between different speeds Turn off the fan

Connect to the Calex app
Before adding this CALEX SMART product, write down the name and password, including spaces and capital letters, of your WiFi network. Make sure you have a strong WiFi signal.

Note:
This item only works on a 2.4GHz WiFi network, not a 5GHz WiFi network. If you get the message that the product only works on 2.4GHz networks, you need to change your network's Wi-Fi frequency to 2.4GHz in the router's settings menu. To do this, contact your Internet service provider.

Adding the Calex Ceiling Lamp With Fan to the Calex App
Download the Calex Smart app from the Google Play Store or the Apple Store. Click on one of the logos below while viewing this page on your phone. You can also use your phone to scan the QR code on the packaging.

Open the app. Are you using the app for the first time? Then follow the on-screen instructions to create your account.

Cleaning and maintenance

• Check support connections, brackets and blade fasteners twice a year. Make sure they are secure. Due to the natural movement of the fan, some connections may loosen over time. It is not necessary to remove the fan from the ceiling.
• Clean your fan periodically. Use only a soft brush or lint-free cloth to avoid scratching the finish.
• Do not use water when cleaning. Water can damage the motor or possibly cause an electric shock. Do not apply oil to your fan or motor. The motor is equipped with permanently lubricated, sealed ball bearings.

Additional Information

This manual also covers the following article numbers:
5701000400
